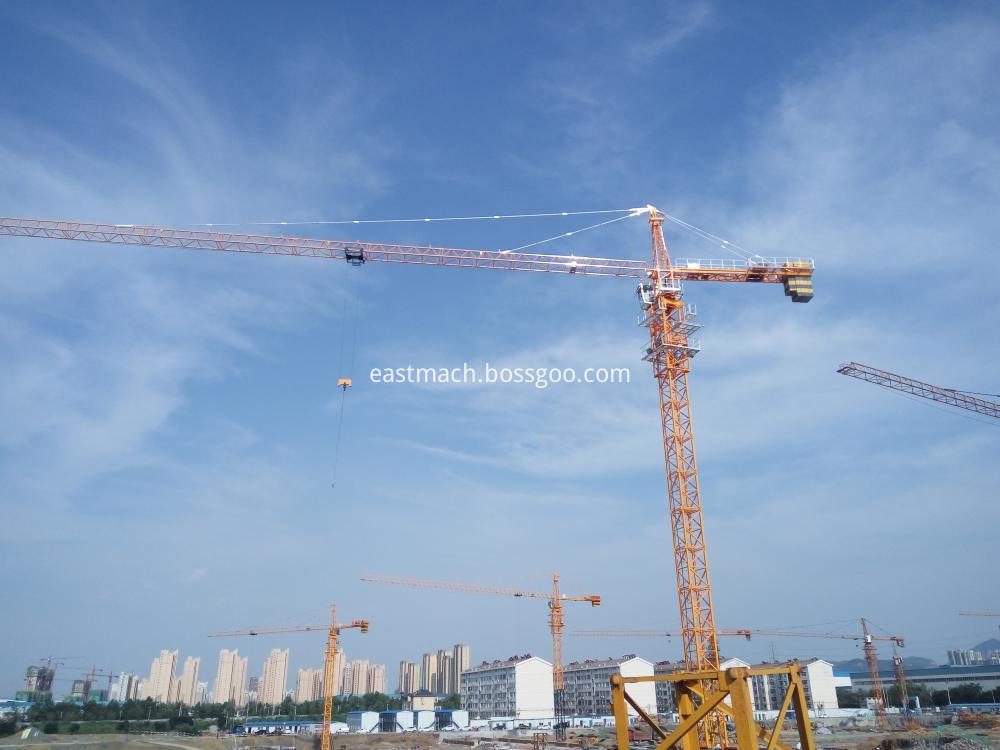

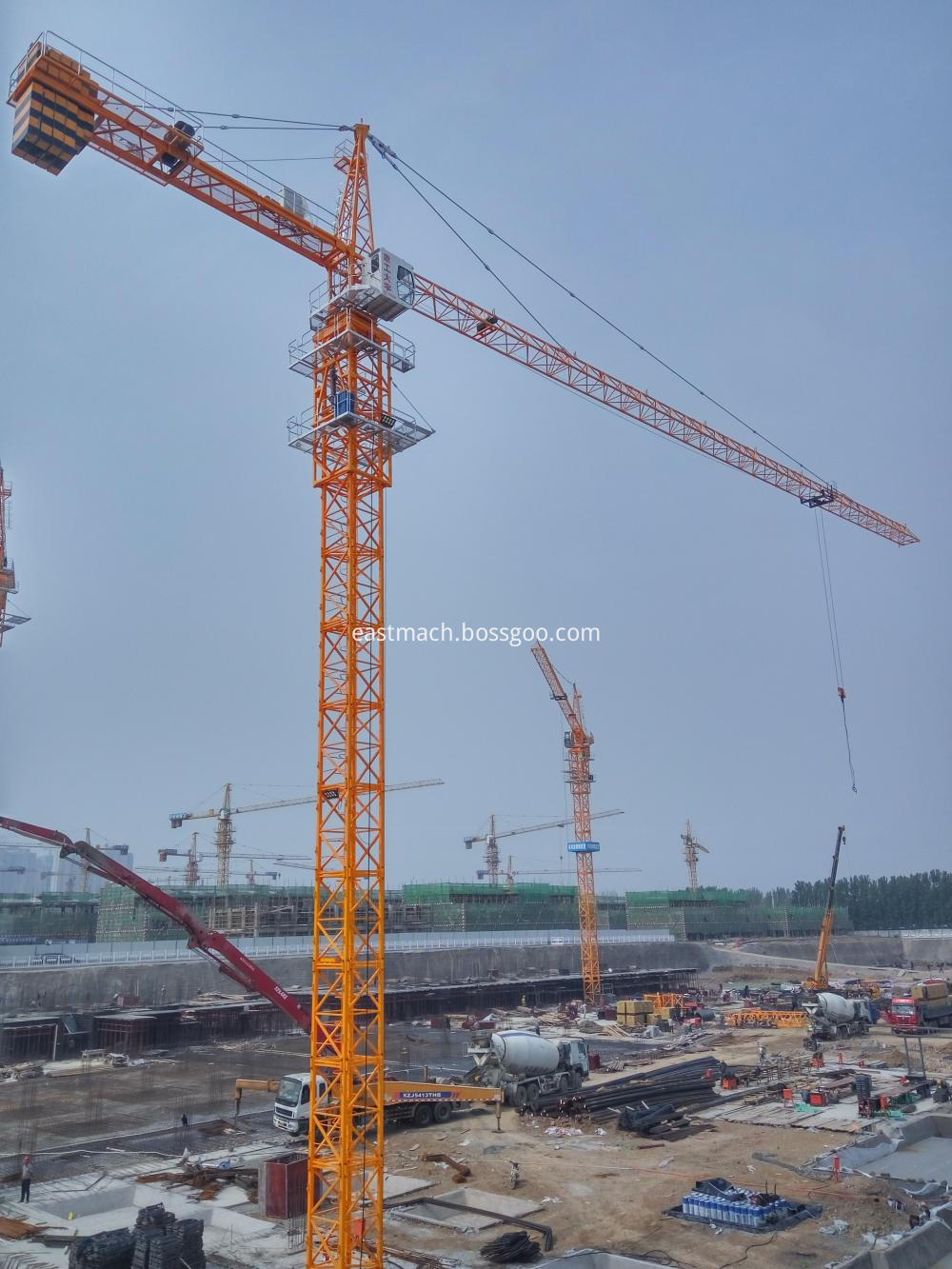

Construction Machinery Tower Crane is a new-style elevating machinery specially designed for the construction of tall buildings and equipment installation, is a type of self-raising multi-purpose tower crane equipped with level arm support, and it allows trolley derricking and upper slewing.
Construction Building Crane adopts standard section hydraulic lifting and connecting, and can decide the crane height according to the actual height of the building, and at the same time the lifting capacity will not be affected.
The Max. attached height of Hydraulic Construction Building Hammerhead Tower Crane can reach 70m.
Hammerhead Tower Crane has scientific layout and beautiful appearance. The operator's room is set independently on one side, with good vision field. It creates a good working environment for the operator.
Hammerhead Tower Crane Specification Table:
|
TYPE |
QTZ63C (TC5211) |
QTZ63D (TC5510) |
QTZ63E (TC5610) |
QTZ63 (TC5013) |
|
|
Rated lifting moment (KN.m) |
630 |
630 |
630 |
630 |
|
|
Working range (m) |
3~52 |
3~55 |
3~56 |
3~50 |
|
|
Load |
Tip load (t) |
1.1 |
1 |
1 |
1.3 |
|
Max load (t) |
6 |
6 |
6 |
6 |
|
|
Lifting height |
Free standing (m) |
41 |
41 |
40 |
40 |
|
Adhesion type (m) |
120 |
120 |
120 |
120 |
|
|
Lifting speed |
Double rates (m/min) |
80/40/7 |
80/40/7 |
80/40/7 |
80/40/7 |
|
Fourfold rates (m/min) |
38.5/19.2/3.5 |
38.5/19.2/3.5 |
38.5/19.2/3.5 |
38.5/19.2/3.5 |
|
|
Min stable fall speed (m/min) |
≤7 |
≤7 |
≤7 |
≤7 |
|
|
Slewing speed (m/min) |
0-0.62 |
0-0.62 |
0-0.62 |
0-0.62 |
|
|
Trolley-travelling speed (m/min) |
20/40 |
20/40 |
20/40 |
20/40 |
|
|
Jacking speed (m/min) |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Balance weight (t) |
9.18 |
10.7 |
/ |
/ |
|
|
Upper chord of jib (20#) |
Φ102*8 |
Φ102*8 |
Φ102*8 |
Φ102*8 |
|
|
Mast section size (mm) |
1611*1611*2500 |
1611*1611*2500 |
1835*1835*2500 |
1835*1835*2500 |
|
|
Mast section material (Q235B)
|
∠160*16& ∠160*14 |
∠160*16 |
â–¡135*135*10 |
∠160*16 |
|
Application Area:
Hammerhead Tower Crane have competitive price and excellent quality, suitable for all kinds of construction project and can work under all kinds of work condition.If you have any questions, please contact with us directly. Hammerhead Tower Crane are produced with High Quality and Good Appearance. Welcome you can visit our Factory. For inqury, Please send mail directly to us.
